Datapoints for he4 + ne37 -> n + mg40
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 6.063404e-25 |
| 0.15 | 4.203743e-19 |
| 0.2 | 1.332604e-15 |
| 0.3 | 2.630822e-11 |
| 0.4 | 1.292922e-08 |
| 0.5 | 1.059329e-06 |
| 0.6 | 3.040693e-05 |
| 0.7 | 4.404856e-04 |
| 0.8 | 3.955983e-03 |
| 0.9 | 2.500892e-02 |
| 1 | 1.210021e-01 |
| 1.5 | 2.760553e+01 |
| 2 | 7.138649e+02 |
| 2.5 | 6.428391e+03 |
| 3 | 3.181799e+04 |
| 3.5 | 1.083053e+05 |
| 4 | 2.868618e+05 |
| 4.5 | 6.363948e+05 |
| 5 | 1.238808e+06 |
| 6 | 3.550042e+06 |
| 7 | 7.825279e+06 |
| 8 | 1.429445e+07 |
| 9 | 2.252877e+07 |
| 10 | 3.134064e+07 |

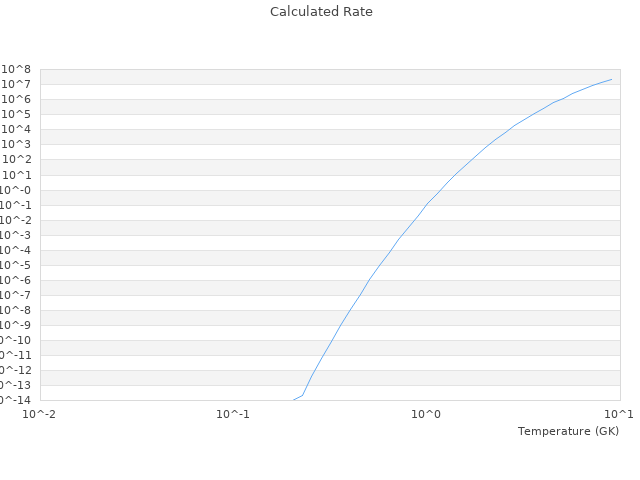

| View Graph | |
