Datapoints for p + ne31 -> n + na31
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 4.384719e-05 |
| 0.15 | 9.246073e-03 |
| 0.2 | 2.082267e-01 |
| 0.3 | 9.463957e+00 |
| 0.4 | 1.066839e+02 |
| 0.5 | 6.094037e+02 |
| 0.6 | 2.322379e+03 |
| 0.7 | 6.767615e+03 |
| 0.8 | 1.630606e+04 |
| 0.9 | 3.411800e+04 |
| 1 | 6.406263e+04 |
| 1.5 | 5.507565e+05 |
| 2 | 1.959844e+06 |
| 2.5 | 4.599660e+06 |
| 3 | 8.600042e+06 |
| 3.5 | 1.402413e+07 |
| 4 | 2.092647e+07 |
| 4.5 | 2.935940e+07 |
| 5 | 3.935342e+07 |
| 6 | 6.385832e+07 |
| 7 | 9.311765e+07 |
| 8 | 1.238003e+08 |
| 9 | 1.506306e+08 |
| 10 | 1.675878e+08 |

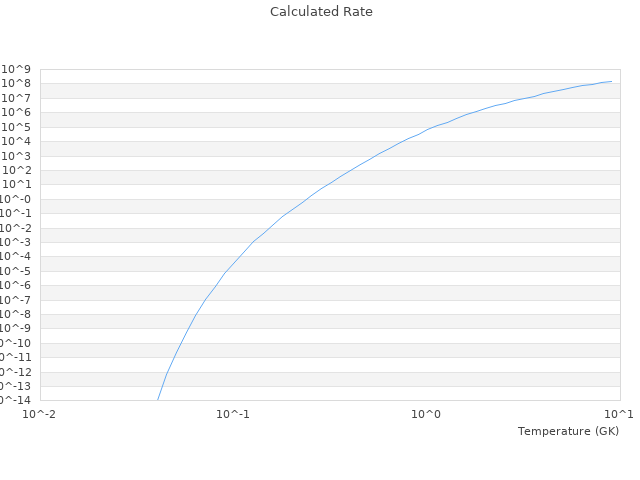

| View Graph | |
