Datapoints for p + ne33 -> n + na33
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 4.350607e-05 |
| 0.15 | 9.237697e-03 |
| 0.2 | 2.076452e-01 |
| 0.3 | 9.412098e+00 |
| 0.4 | 1.061331e+02 |
| 0.5 | 6.072471e+02 |
| 0.6 | 2.318775e+03 |
| 0.7 | 6.770303e+03 |
| 0.8 | 1.634118e+04 |
| 0.9 | 3.424332e+04 |
| 1 | 6.438023e+04 |
| 1.5 | 5.555765e+05 |
| 2 | 1.980135e+06 |
| 2.5 | 4.652741e+06 |
| 3 | 8.712422e+06 |
| 3.5 | 1.423734e+07 |
| 4 | 2.130308e+07 |
| 4.5 | 2.998768e+07 |
| 5 | 4.034976e+07 |
| 6 | 6.604613e+07 |
| 7 | 9.720900e+07 |
| 8 | 1.304273e+08 |
| 9 | 1.600183e+08 |
| 10 | 1.792688e+08 |

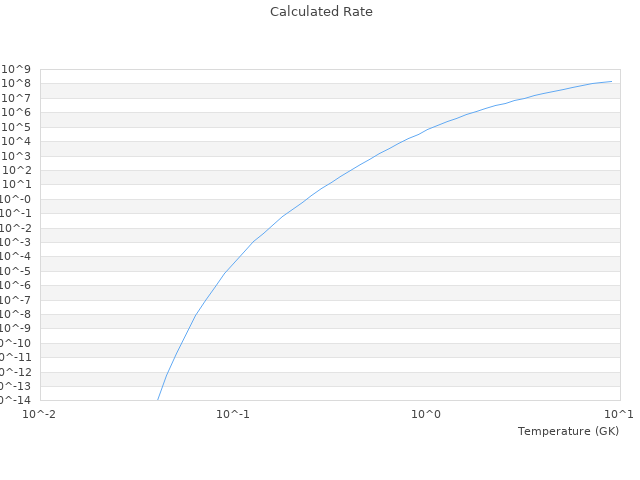

| View Graph | |
