Datapoints for na19 -> p + ne18
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.088843e+01 |
| 0.15 | 1.064034e+02 |
| 0.2 | 4.667500e+02 |
| 0.3 | 4.234129e+03 |
| 0.4 | 2.332684e+04 |
| 0.5 | 9.392167e+04 |
| 0.6 | 3.014769e+05 |
| 0.7 | 8.146894e+05 |
| 0.8 | 1.924457e+06 |
| 0.9 | 4.083202e+06 |
| 1 | 7.940692e+06 |
| 1.5 | 9.254856e+07 |
| 2 | 4.688564e+08 |
| 2.5 | 1.552045e+09 |
| 3 | 4.020353e+09 |
| 3.5 | 8.920896e+09 |
| 4 | 1.781113e+10 |
| 4.5 | 3.291107e+10 |
| 5 | 5.722671e+10 |
| 6 | 1.495005e+11 |
| 7 | 3.308690e+11 |
| 8 | 6.286432e+11 |
| 9 | 1.027362e+12 |
| 10 | 1.440179e+12 |

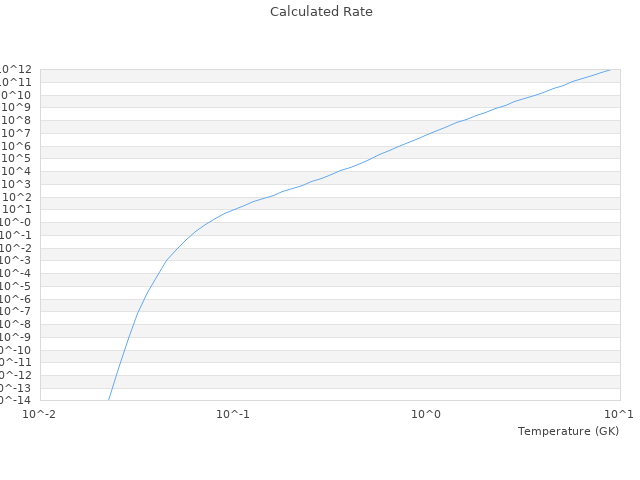

| View Graph | |
