Datapoints for p + ne29 -> na30
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 6.906687e-10 |
| 0.15 | 1.420619e-07 |
| 0.2 | 3.178586e-06 |
| 0.3 | 1.444206e-04 |
| 0.4 | 1.636650e-03 |
| 0.5 | 9.422329e-03 |
| 0.6 | 3.624163e-02 |
| 0.7 | 1.066844e-01 |
| 0.8 | 2.597843e-01 |
| 0.9 | 5.494721e-01 |
| 1 | 1.043015e+00 |
| 1.5 | 9.447317e+00 |
| 2 | 3.518396e+01 |
| 2.5 | 8.580475e+01 |
| 3 | 1.656531e+02 |
| 3.5 | 2.774576e+02 |
| 4 | 4.234256e+02 |
| 4.5 | 6.054845e+02 |
| 5 | 8.249885e+02 |
| 6 | 1.375476e+03 |
| 7 | 2.051854e+03 |
| 8 | 2.786681e+03 |
| 9 | 3.466155e+03 |
| 10 | 3.951718e+03 |

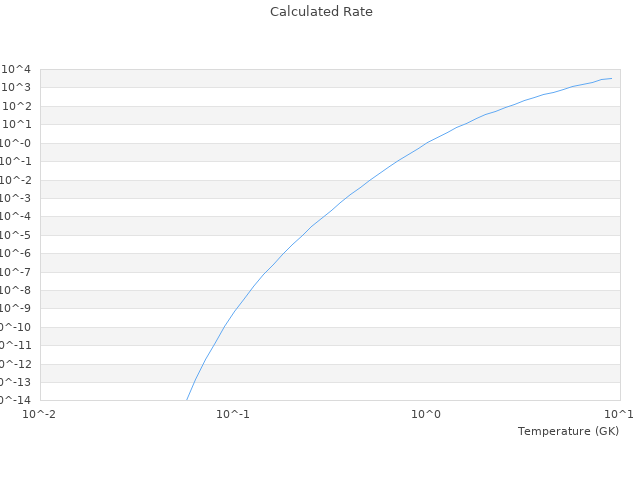

| View Graph | |
