Datapoints for p + ne39 -> na40
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 6.844138e-10 |
| 0.15 | 1.528625e-07 |
| 0.2 | 3.458763e-06 |
| 0.3 | 1.563233e-04 |
| 0.4 | 1.758951e-03 |
| 0.5 | 1.006232e-02 |
| 0.6 | 3.845105e-02 |
| 0.7 | 1.123718e-01 |
| 0.8 | 2.714358e-01 |
| 0.9 | 5.690696e-01 |
| 1 | 1.070040e+00 |
| 1.5 | 9.200007e+00 |
| 2 | 3.253805e+01 |
| 2.5 | 7.580714e+01 |
| 3 | 1.408656e+02 |
| 3.5 | 2.287926e+02 |
| 4 | 3.408864e+02 |
| 4.5 | 4.787352e+02 |
| 5 | 6.438492e+02 |
| 6 | 1.058209e+03 |
| 7 | 1.572934e+03 |
| 8 | 2.141075e+03 |
| 9 | 2.674231e+03 |
| 10 | 3.057694e+03 |

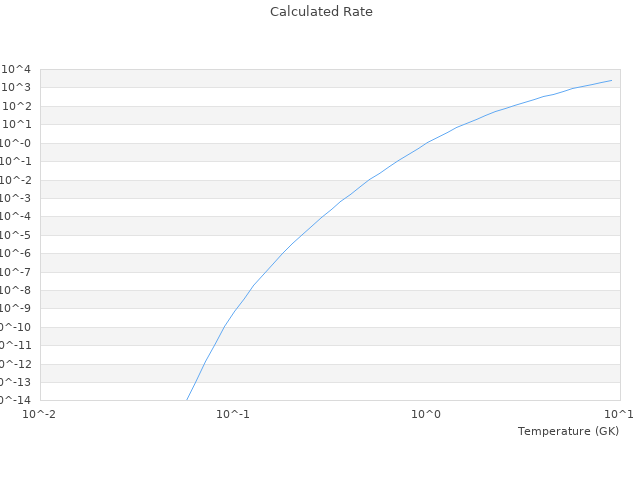

| View Graph | |
