Datapoints for
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.228537e+08 |
| 0.15 | 2.176829e+08 |
| 0.2 | 2.158936e+08 |
| 0.3 | 2.169017e+08 |
| 0.4 | 2.201977e+08 |
| 0.5 | 2.238849e+08 |
| 0.6 | 2.271639e+08 |
| 0.7 | 2.296495e+08 |
| 0.8 | 2.311484e+08 |
| 0.9 | 2.315699e+08 |
| 1 | 2.308857e+08 |
| 1.5 | 2.121637e+08 |
| 2 | 1.753046e+08 |
| 2.5 | 1.319713e+08 |
| 3 | 9.144947e+07 |
| 3.5 | 5.878615e+07 |
| 4 | 3.526766e+07 |
| 4.5 | 1.984106e+07 |
| 5 | 1.050827e+07 |
| 6 | 2.489980e+06 |
| 7 | 4.789244e+05 |
| 8 | 7.593143e+04 |
| 9 | 1.004355e+04 |
| 10 | 1.119158e+03 |

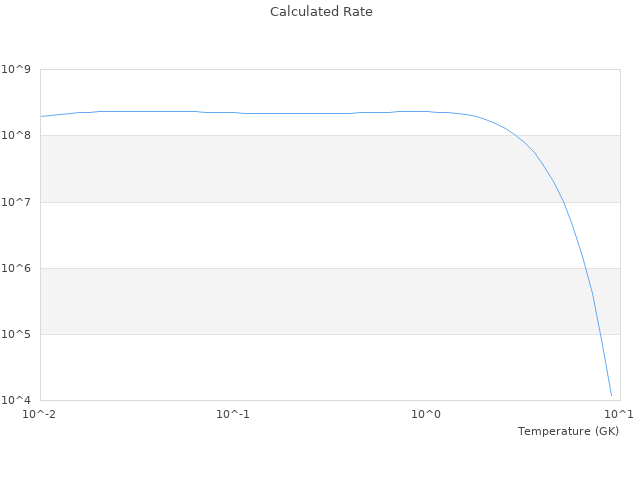

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
