Datapoints for he4 + pd84 -> p + ag87
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 4.052402e-92 |
| 0.15 | 2.536353e-76 |
| 0.2 | 2.282823e-66 |
| 0.3 | 6.602569e-54 |
| 0.4 | 4.563691e-46 |
| 0.5 | 1.662281e-40 |
| 0.6 | 2.826918e-36 |
| 0.7 | 6.616678e-33 |
| 0.8 | 3.914189e-30 |
| 0.9 | 8.495140e-28 |
| 1 | 8.629518e-26 |
| 1.5 | 9.268349e-19 |
| 2 | 2.162046e-14 |
| 2.5 | 2.475618e-11 |
| 3 | 4.895603e-09 |
| 3.5 | 3.115189e-07 |
| 4 | 9.044942e-06 |
| 4.5 | 1.484011e-04 |
| 5 | 1.581874e-03 |
| 6 | 7.028364e-02 |
| 7 | 1.291819e+00 |
| 8 | 1.290895e+01 |
| 9 | 8.288551e+01 |
| 10 | 3.812794e+02 |

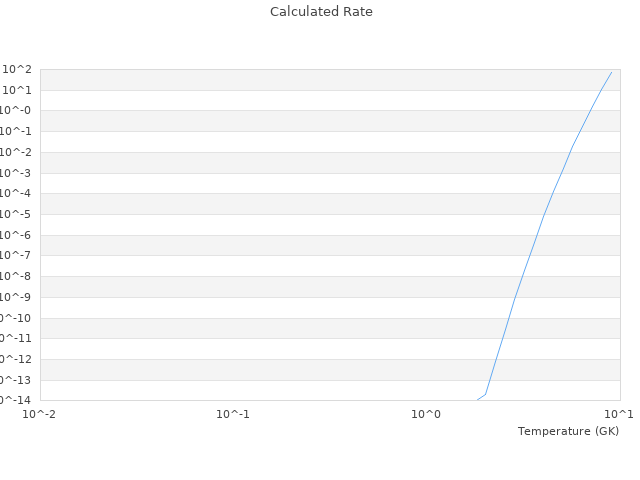

| View Graph | |
