Datapoints for he4 + mg19 -> p + al22
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 9.349583e-30 |
| 0.15 | 1.217426e-23 |
| 0.2 | 8.658751e-20 |
| 0.3 | 5.717348e-15 |
| 0.4 | 6.120453e-12 |
| 0.5 | 8.584785e-10 |
| 0.6 | 3.672598e-08 |
| 0.7 | 7.284189e-07 |
| 0.8 | 8.476565e-06 |
| 0.9 | 6.686676e-05 |
| 1 | 3.929574e-04 |
| 1.5 | 1.885604e-01 |
| 2 | 8.398471e+00 |
| 2.5 | 1.165037e+02 |
| 3 | 8.207319e+02 |
| 3.5 | 3.740214e+03 |
| 4 | 1.263150e+04 |
| 4.5 | 3.435809e+04 |
| 5 | 7.947134e+04 |
| 6 | 3.001842e+05 |
| 7 | 8.229762e+05 |
| 8 | 1.821090e+06 |
| 9 | 3.470229e+06 |
| 10 | 5.939473e+06 |

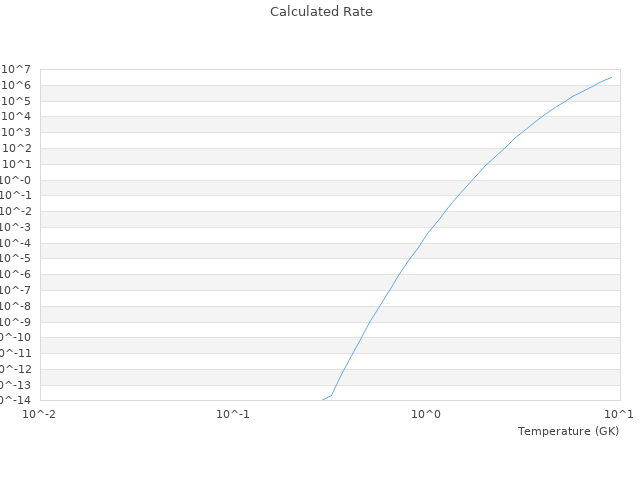

| View Graph | |
