Datapoints for he4 + ag86 -> p + cd89
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 8.821031e-93 |
| 0.15 | 8.156930e-77 |
| 0.2 | 9.178113e-67 |
| 0.3 | 3.392163e-54 |
| 0.4 | 2.665801e-46 |
| 0.5 | 1.047139e-40 |
| 0.6 | 1.866694e-36 |
| 0.7 | 4.503323e-33 |
| 0.8 | 2.716523e-30 |
| 0.9 | 5.969303e-28 |
| 1 | 6.109308e-26 |
| 1.5 | 6.571256e-19 |
| 2 | 1.504372e-14 |
| 2.5 | 1.687677e-11 |
| 3 | 3.281045e-09 |
| 3.5 | 2.062551e-07 |
| 4 | 5.946529e-06 |
| 4.5 | 9.736018e-05 |
| 5 | 1.040436e-03 |
| 6 | 4.704674e-02 |
| 7 | 8.929387e-01 |
| 8 | 9.328684e+00 |
| 9 | 6.328792e+01 |
| 10 | 3.104502e+02 |

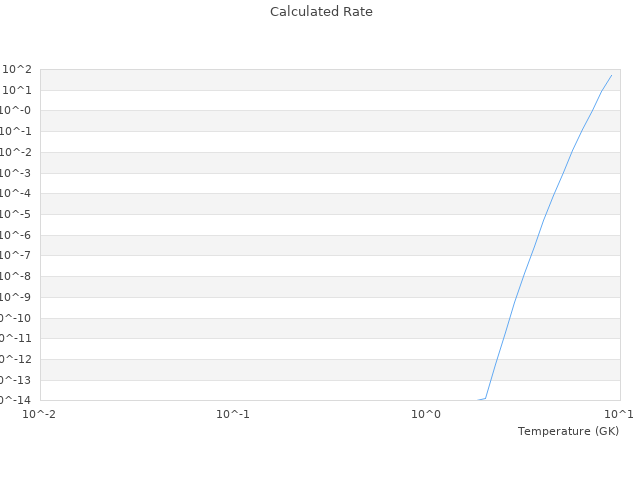

| View Graph | |
