Datapoints for p + cd90 -> he4 + ag87
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 5.277976e-276 |
| 0.2 | 6.810020e-216 |
| 0.3 | 2.998700e-153 |
| 0.4 | 2.653161e-120 |
| 0.5 | 1.142148e-99 |
| 0.6 | 2.196393e-85 |
| 0.7 | 7.859529e-75 |
| 0.8 | 1.143208e-66 |
| 0.9 | 3.884473e-60 |
| 1 | 8.982723e-55 |
| 1.5 | 1.171939e-37 |
| 2 | 3.107108e-28 |
| 2.5 | 3.924393e-22 |
| 3 | 8.419604e-18 |
| 3.5 | 1.542945e-14 |
| 4 | 5.626903e-12 |
| 4.5 | 6.663836e-10 |
| 5 | 3.476946e-08 |
| 6 | 1.698432e-05 |
| 7 | 1.754839e-03 |
| 8 | 6.460631e-02 |
| 9 | 1.149812e+00 |
| 10 | 1.198185e+01 |

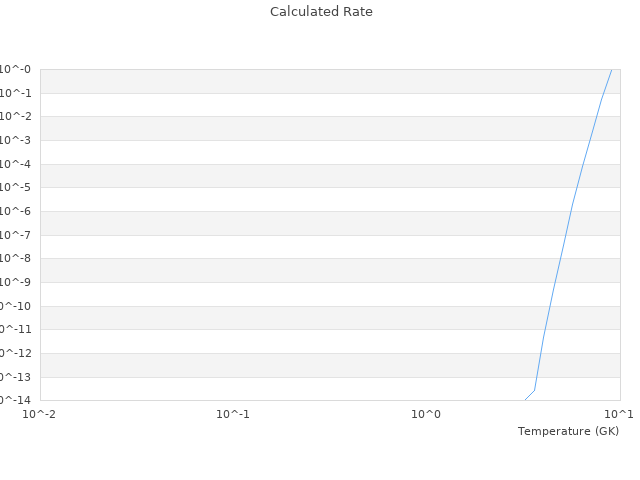

| View Graph | |
