Datapoints for p + mg22 -> he4 + na19
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 1.861883e-304 |
| 0.2 | 9.163031e-230 |
| 0.3 | 3.670916e-154 |
| 0.4 | 8.884877e-116 |
| 0.5 | 1.940540e-92 |
| 0.6 | 1.083352e-76 |
| 0.7 | 2.547924e-65 |
| 0.8 | 1.050410e-56 |
| 0.9 | 6.101024e-50 |
| 1 | 1.756134e-44 |
| 1.5 | 9.285951e-28 |
| 2 | 4.095902e-19 |
| 2.5 | 8.661211e-14 |
| 3 | 3.672417e-10 |
| 3.5 | 1.594652e-07 |
| 4 | 1.625224e-05 |
| 4.5 | 6.208105e-04 |
| 5 | 1.181812e-02 |
| 6 | 1.041672e+00 |
| 7 | 2.682791e+01 |
| 8 | 3.167918e+02 |
| 9 | 2.214760e+03 |
| 10 | 1.071905e+04 |

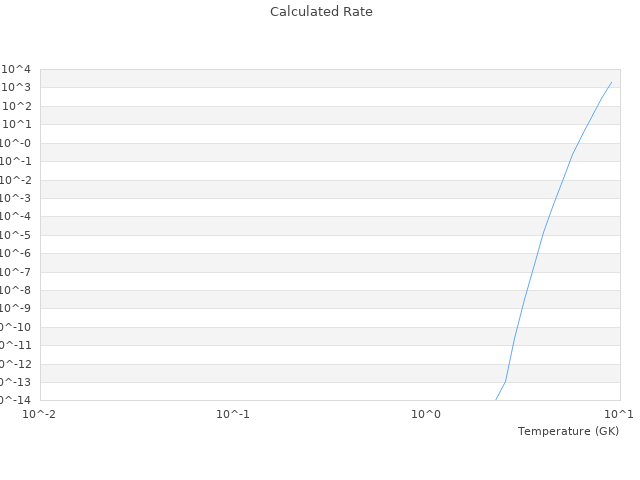

| View Graph | |
