Datapoints for p + ne33 -> he4 + f30
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.007040e-103 |
| 0.15 | 1.100554e-72 |
| 0.2 | 7.567792e-57 |
| 0.3 | 2.945853e-40 |
| 0.4 | 1.908733e-31 |
| 0.5 | 7.143399e-26 |
| 0.6 | 5.575814e-22 |
| 0.7 | 4.407928e-19 |
| 0.8 | 7.944387e-17 |
| 0.9 | 5.183237e-15 |
| 1 | 1.626751e-13 |
| 1.5 | 1.049477e-08 |
| 2 | 4.783085e-06 |
| 2.5 | 2.486340e-04 |
| 3 | 4.039977e-03 |
| 3.5 | 3.256056e-02 |
| 4 | 1.660814e-01 |
| 4.5 | 6.176187e-01 |
| 5 | 1.828672e+00 |
| 6 | 1.000917e+01 |
| 7 | 3.603237e+01 |
| 8 | 9.861615e+01 |
| 9 | 2.227418e+02 |
| 10 | 4.362985e+02 |

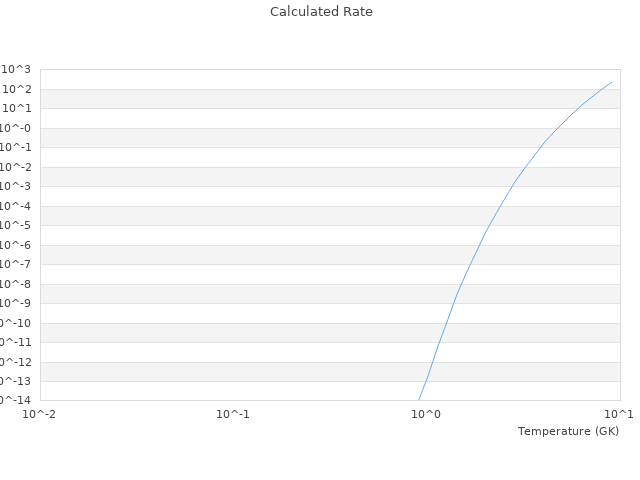

| View Graph | |
