Datapoints for p + pd87 -> n + ag87
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | INFe-321 |
| 0.4 | 5.435864e-239 |
| 0.5 | 2.234858e-189 |
| 0.6 | 2.705000e-156 |
| 0.7 | 1.168481e-132 |
| 0.8 | 6.275847e-115 |
| 0.9 | 3.892964e-101 |
| 1 | 4.229761e-90 |
| 1.5 | 5.598462e-57 |
| 2 | 2.083433e-40 |
| 2.5 | 1.838492e-30 |
| 3 | 7.862243e-24 |
| 3.5 | 4.281224e-19 |
| 4 | 1.522968e-15 |
| 4.5 | 8.783657e-13 |
| 5 | 1.417468e-10 |
| 6 | 2.891370e-07 |
| 7 | 6.657896e-05 |
| 8 | 3.931457e-03 |
| 9 | 9.395773e-02 |
| 10 | 1.195361e+00 |

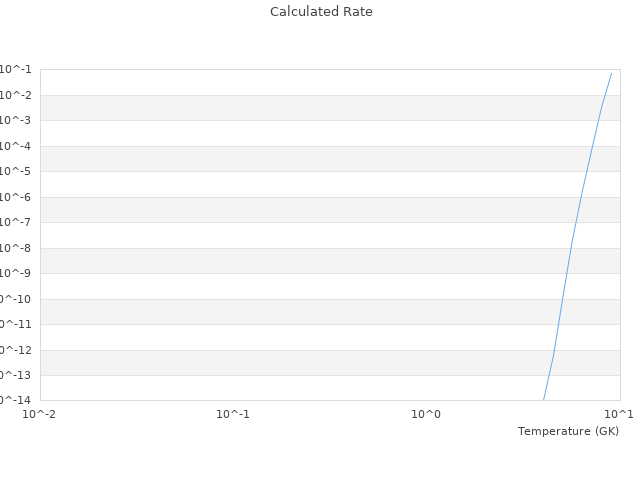

| View Graph | |
