Datapoints for p + ti39 -> he4 + sc36
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 2.744414e-292 |
| 0.2 | 3.074393e-223 |
| 0.3 | 9.681779e-153 |
| 0.4 | 1.459208e-116 |
| 0.5 | 2.320790e-94 |
| 0.6 | 2.936980e-79 |
| 0.7 | 2.851620e-68 |
| 0.8 | 6.858069e-60 |
| 0.9 | 2.873185e-53 |
| 1 | 6.836943e-48 |
| 1.5 | 3.472235e-31 |
| 2 | 2.377183e-22 |
| 2.5 | 8.363467e-17 |
| 3 | 5.775979e-13 |
| 3.5 | 3.914790e-10 |
| 4 | 5.952409e-08 |
| 4.5 | 3.251135e-06 |
| 5 | 8.515958e-05 |
| 6 | 1.286461e-02 |
| 7 | 5.082081e-01 |
| 8 | 8.404560e+00 |
| 9 | 7.623933e+01 |
| 10 | 4.483509e+02 |

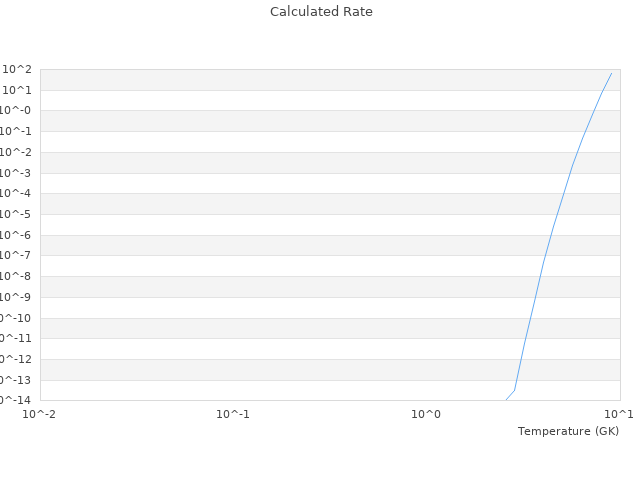

| View Graph | |
