Datapoints for sg317 -> n + sg316
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 5.153344e-56 |
| 0.15 | 3.659067e-33 |
| 0.2 | 1.167356e-21 |
| 0.3 | 4.821540e-10 |
| 0.4 | 3.729690e-04 |
| 0.5 | 1.413286e+00 |
| 0.6 | 3.659326e+02 |
| 0.7 | 2.014445e+04 |
| 0.8 | 4.171405e+05 |
| 0.9 | 4.468995e+06 |
| 1 | 3.002472e+07 |
| 1.5 | 8.959309e+09 |
| 2 | 1.333223e+11 |
| 2.5 | 5.419790e+11 |
| 3 | 1.086737e+12 |
| 3.5 | 1.400200e+12 |
| 4 | 1.331273e+12 |
| 4.5 | 1.012350e+12 |
| 5 | 6.477263e+11 |
| 6 | 1.790251e+11 |
| 7 | 3.330619e+10 |
| 8 | 4.581561e+09 |
| 9 | 4.936960e+08 |
| 10 | 4.330170e+07 |

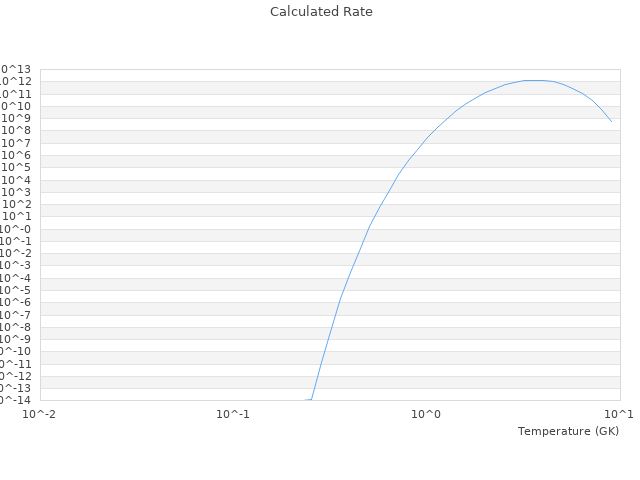

| View Graph | |
