Datapoints for p + ti56 -> v57
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 8.290874e-20 |
| 0.15 | 1.009895e-15 |
| 0.2 | 2.202353e-13 |
| 0.3 | 1.624497e-10 |
| 0.4 | 1.123033e-08 |
| 0.5 | 2.443511e-07 |
| 0.6 | 2.653024e-06 |
| 0.7 | 1.808186e-05 |
| 0.8 | 8.833007e-05 |
| 0.9 | 3.363985e-04 |
| 1 | 1.057183e-03 |
| 1.5 | 5.424726e-02 |
| 2 | 5.676988e-01 |
| 2.5 | 2.796610e+00 |
| 3 | 9.121579e+00 |
| 3.5 | 2.318678e+01 |
| 4 | 5.003852e+01 |
| 4.5 | 9.614716e+01 |
| 5 | 1.690630e+02 |
| 6 | 4.243344e+02 |
| 7 | 8.425990e+02 |
| 8 | 1.347226e+03 |
| 9 | 1.734288e+03 |
| 10 | 1.784943e+03 |

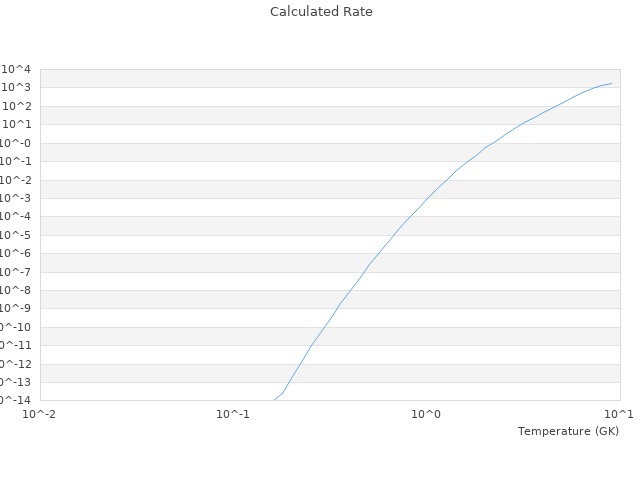

| View Graph | |
