Datapoints for p + i108 -> xe109
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.507739e-35 |
| 0.15 | 1.127562e-28 |
| 0.2 | 2.314687e-24 |
| 0.3 | 5.362760e-19 |
| 0.4 | 1.188323e-15 |
| 0.5 | 2.673734e-13 |
| 0.6 | 1.585415e-11 |
| 0.7 | 3.971992e-10 |
| 0.8 | 5.480700e-09 |
| 0.9 | 4.899385e-08 |
| 1 | 3.154689e-07 |
| 1.5 | 1.777752e-04 |
| 2 | 7.261788e-03 |
| 2.5 | 8.277445e-02 |
| 3 | 4.525221e-01 |
| 3.5 | 1.549349e+00 |
| 4 | 3.856557e+00 |
| 4.5 | 7.643345e+00 |
| 5 | 1.279553e+01 |
| 6 | 2.509498e+01 |
| 7 | 3.568767e+01 |
| 8 | 4.121702e+01 |
| 9 | 4.140206e+01 |
| 10 | 3.780157e+01 |

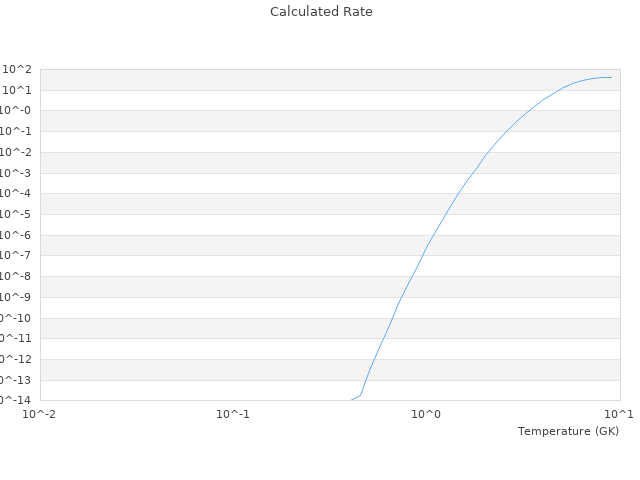

| View Graph | |
