Datapoints for p + tm145 -> yb146
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.295174e-75 |
| 0.15 | 4.676589e-50 |
| 0.2 | 1.339699e-38 |
| 0.3 | 6.848151e-28 |
| 0.4 | 1.253081e-22 |
| 0.5 | 2.410882e-19 |
| 0.6 | 5.241270e-17 |
| 0.7 | 3.301882e-15 |
| 0.8 | 9.436252e-14 |
| 0.9 | 1.559066e-12 |
| 1 | 1.720523e-11 |
| 1.5 | 7.379599e-08 |
| 2 | 1.125684e-05 |
| 2.5 | 2.940776e-04 |
| 3 | 2.583409e-03 |
| 3.5 | 1.096608e-02 |
| 4 | 2.801829e-02 |
| 4.5 | 4.974092e-02 |
| 5 | 6.773461e-02 |
| 6 | 7.385756e-02 |
| 7 | 5.291846e-02 |
| 8 | 3.107645e-02 |
| 9 | 1.717721e-02 |
| 10 | 9.784016e-03 |

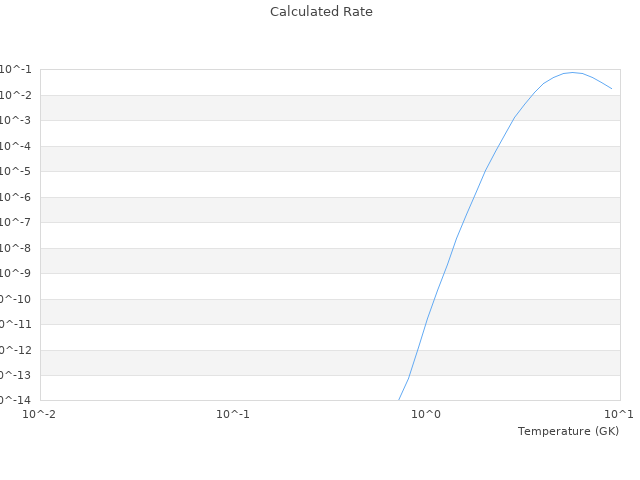

| View Graph | |
