Datapoints for pb181 -> he4 + hg177
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 1.478642e-238 |
| 0.2 | 1.593524e-167 |
| 0.3 | 2.363943e-93 |
| 0.4 | 8.494966e-57 |
| 0.5 | 3.928017e-36 |
| 0.6 | 1.899567e-23 |
| 0.7 | 3.205132e-15 |
| 0.8 | 1.141669e-09 |
| 0.9 | 8.272034e-06 |
| 1 | 4.629638e-03 |
| 1.5 | 5.141924e+03 |
| 2 | 2.478568e+05 |
| 2.5 | 1.231707e+06 |
| 3 | 3.405520e+06 |
| 3.5 | 7.784258e+06 |
| 4 | 1.586295e+07 |
| 4.5 | 2.876945e+07 |
| 5 | 4.586437e+07 |
| 6 | 7.806971e+07 |
| 7 | 8.279936e+07 |
| 8 | 6.371199e+07 |
| 9 | 4.322592e+07 |
| 10 | 3.175148e+07 |

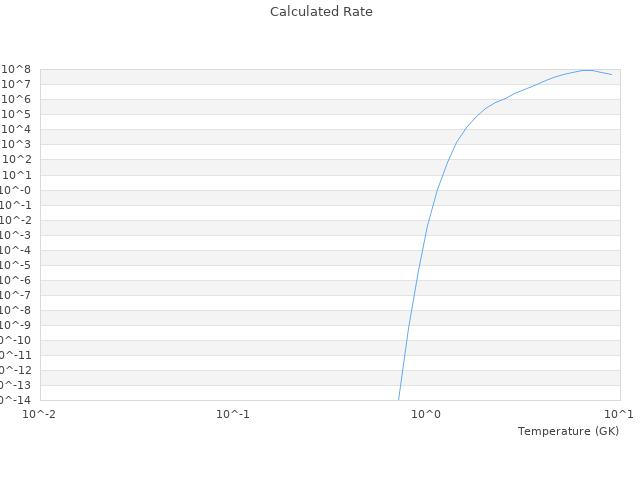

| View Graph | |
