Datapoints for he4 + o17 -> ne21
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.666383e-20 |
| 0.15 | 1.041849e-15 |
| 0.2 | 2.474663e-13 |
| 0.3 | 4.380507e-10 |
| 0.4 | 1.604439e-07 |
| 0.5 | 7.235057e-06 |
| 0.6 | 9.809534e-05 |
| 0.7 | 6.454754e-04 |
| 0.8 | 2.680665e-03 |
| 0.9 | 8.166340e-03 |
| 1 | 1.998588e-02 |
| 1.5 | 3.013793e-01 |
| 2 | 1.361297e+00 |
| 2.5 | 4.104527e+00 |
| 3 | 9.478577e+00 |
| 3.5 | 1.814770e+01 |
| 4 | 3.058999e+01 |
| 4.5 | 4.711665e+01 |
| 5 | 6.789164e+01 |
| 6 | 1.222835e+02 |
| 7 | 1.931915e+02 |
| 8 | 2.792253e+02 |
| 9 | 3.785968e+02 |
| 10 | 4.893743e+02 |

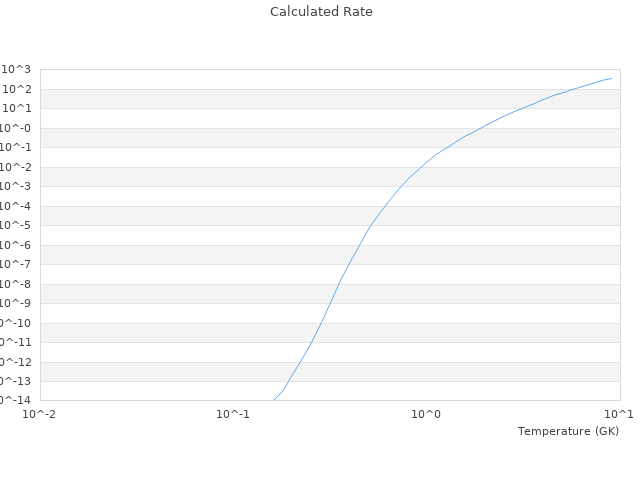

| View Graph | |
