Datapoints for p + ne20 -> na21
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.028946e-09 |
| 0.15 | 2.243405e-07 |
| 0.2 | 4.752384e-06 |
| 0.3 | 2.776055e-04 |
| 0.4 | 3.852366e-03 |
| 0.5 | 2.285523e-02 |
| 0.6 | 7.888124e-02 |
| 0.7 | 1.960049e-01 |
| 0.8 | 4.155451e-01 |
| 0.9 | 8.457116e-01 |
| 1 | 1.715473e+00 |
| 1.5 | 2.920909e+01 |
| 2 | 1.462044e+02 |
| 2.5 | 3.926173e+02 |
| 3 | 7.607891e+02 |
| 3.5 | 1.216172e+03 |
| 4 | 1.718532e+03 |
| 4.5 | 2.232957e+03 |
| 5 | 2.733369e+03 |
| 6 | 3.629571e+03 |
| 7 | 4.342421e+03 |
| 8 | 4.869129e+03 |
| 9 | 5.233296e+03 |
| 10 | 5.466021e+03 |

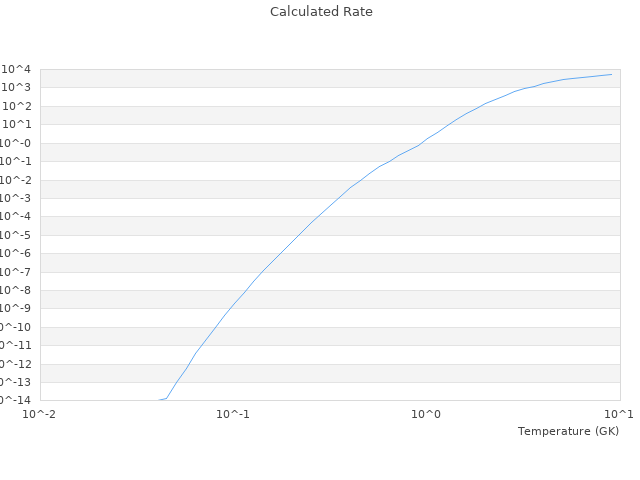

| View Graph | |
