Datapoints for p + f18 -> ne19
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.468024e-09 |
| 0.15 | 2.539226e-07 |
| 0.2 | 1.006005e-05 |
| 0.3 | 2.284709e-03 |
| 0.4 | 4.153451e-02 |
| 0.5 | 2.360304e-01 |
| 0.6 | 1.049924e+00 |
| 0.7 | 2.700594e+00 |
| 0.8 | 5.445508e+00 |
| 0.9 | 9.552762e+00 |
| 1 | 1.491796e+01 |
| 1.5 | 6.393033e+01 |
| 2 | 1.420026e+02 |
| 2.5 | 2.354984e+02 |
| 3 | 3.364115e+02 |
| 3.5 | 4.405077e+02 |
| 4 | 5.455883e+02 |
| 4.5 | 6.505476e+02 |
| 5 | 7.548881e+02 |
| 6 | 9.613692e+02 |
| 7 | 1.166119e+03 |
| 8 | 1.371932e+03 |
| 9 | 1.582442e+03 |
| 10 | 1.801731e+03 |

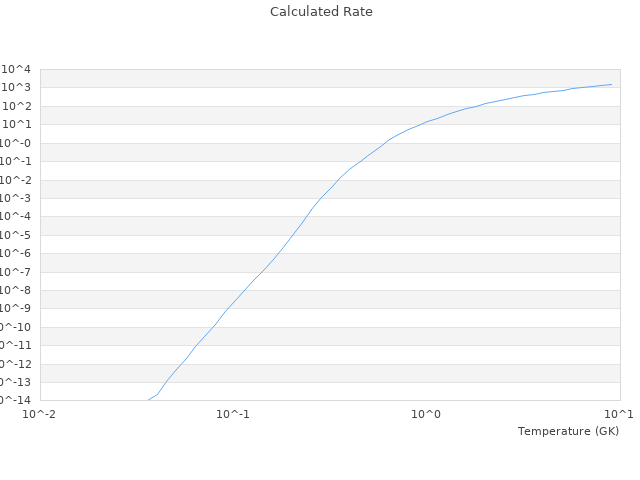

| View Graph | |
