Datapoints for p + ti42 -> v43
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 6.915527e-20 |
| 0.15 | 6.300880e-15 |
| 0.2 | 1.122262e-11 |
| 0.3 | 4.816635e-08 |
| 0.4 | 3.027148e-06 |
| 0.5 | 3.377682e-05 |
| 0.6 | 1.639300e-04 |
| 0.7 | 4.991038e-04 |
| 0.8 | 1.129846e-03 |
| 0.9 | 2.109526e-03 |
| 1 | 3.499289e-03 |
| 1.5 | 2.432001e-02 |
| 2 | 1.476583e-01 |
| 2.5 | 6.160572e-01 |
| 3 | 1.758748e+00 |
| 3.5 | 3.801247e+00 |
| 4 | 6.665266e+00 |
| 4.5 | 9.971299e+00 |
| 5 | 1.325469e+01 |
| 6 | 1.871121e+01 |
| 7 | 2.258711e+01 |
| 8 | 2.484679e+01 |
| 9 | 2.490977e+01 |
| 10 | 2.278422e+01 |

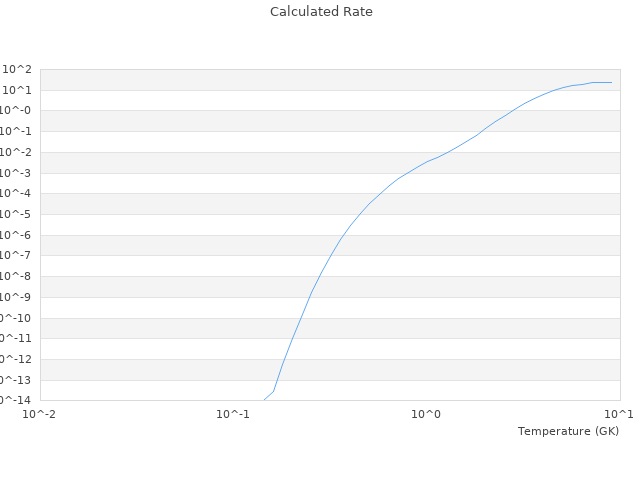

| View Graph | |
