Datapoints for o18 -> he4 + c14
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | INFe-320 |
| 0.15 | 5.351565e-213 |
| 0.2 | 3.389012e-159 |
| 0.3 | 4.574529e-105 |
| 0.4 | 1.348458e-75 |
| 0.5 | 1.174484e-57 |
| 0.6 | 1.076461e-45 |
| 0.7 | 3.771976e-37 |
| 0.8 | 9.661348e-31 |
| 0.9 | 9.320123e-26 |
| 1 | 9.056165e-22 |
| 1.5 | 8.313833e-10 |
| 2 | 7.987087e-04 |
| 2.5 | 3.128576e+00 |
| 3 | 7.929381e+02 |
| 3.5 | 4.313936e+04 |
| 4 | 9.344004e+05 |
| 4.5 | 1.148789e+07 |
| 5 | 9.838517e+07 |
| 6 | 3.523758e+09 |
| 7 | 6.120157e+10 |
| 8 | 6.047274e+11 |
| 9 | 3.862323e+12 |
| 10 | 1.756161e+13 |

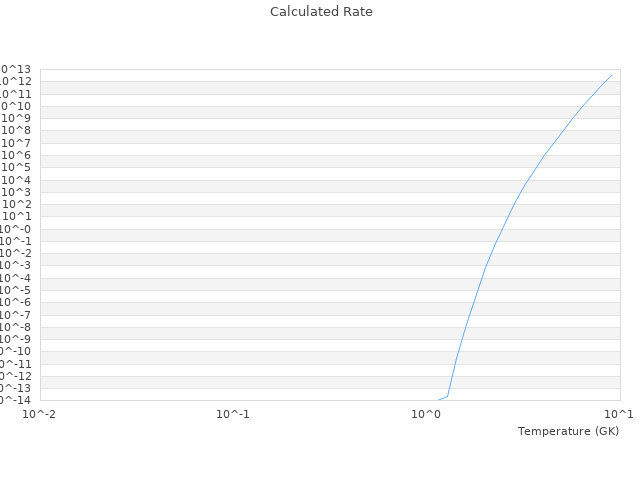

| View Graph | |
