Datapoints for p + f17 -> ne18
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.645397e-09 |
| 0.15 | 2.766712e-07 |
| 0.2 | 5.052323e-06 |
| 0.3 | 1.891317e-04 |
| 0.4 | 2.497816e-03 |
| 0.5 | 2.507147e-02 |
| 0.6 | 1.530372e-01 |
| 0.7 | 5.855459e-01 |
| 0.8 | 1.604923e+00 |
| 0.9 | 3.489522e+00 |
| 1 | 6.438885e+00 |
| 1.5 | 3.723509e+01 |
| 2 | 8.277319e+01 |
| 2.5 | 1.286684e+02 |
| 3 | 1.702692e+02 |
| 3.5 | 2.083873e+02 |
| 4 | 2.454416e+02 |
| 4.5 | 2.838112e+02 |
| 5 | 3.253224e+02 |
| 6 | 4.220686e+02 |
| 7 | 5.396415e+02 |
| 8 | 6.770249e+02 |
| 9 | 8.309349e+02 |
| 10 | 9.974548e+02 |

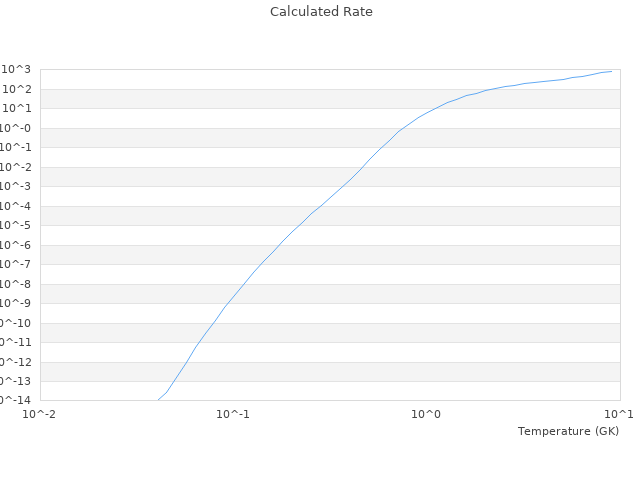

| View Graph | |
