Datapoints for he4 + o16 -> p + f19
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 1.041437e-275 |
| 0.2 | 1.131081e-205 |
| 0.3 | 3.092715e-135 |
| 0.4 | 5.411798e-100 |
| 0.5 | 7.283370e-79 |
| 0.6 | 8.418289e-65 |
| 0.7 | 9.030642e-55 |
| 0.8 | 3.126511e-47 |
| 0.9 | 2.325085e-41 |
| 1 | 1.137546e-36 |
| 1.5 | 1.726589e-22 |
| 2 | 3.908956e-15 |
| 2.5 | 1.183188e-10 |
| 3 | 1.201649e-07 |
| 3.5 | 1.708471e-05 |
| 4 | 7.085582e-04 |
| 4.5 | 1.298088e-02 |
| 5 | 1.347443e-01 |
| 6 | 4.676955e+00 |
| 7 | 6.128590e+01 |
| 8 | 4.304451e+02 |
| 9 | 1.917662e+03 |
| 10 | 5.811941e+03 |

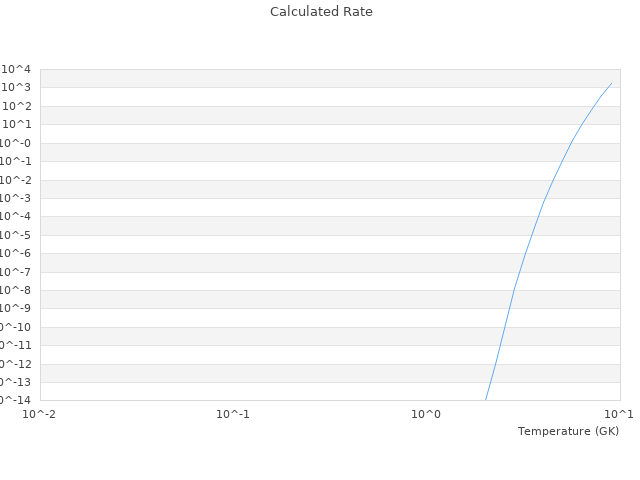

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
