Datapoints for he4 + o13 -> p + p + o15
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.542061e-24 |
| 0.15 | 2.839793e-21 |
| 0.2 | 3.174430e-18 |
| 0.3 | 9.110513e-13 |
| 0.4 | 8.933528e-10 |
| 0.5 | 9.006985e-08 |
| 0.6 | 2.631679e-06 |
| 0.7 | 3.487965e-05 |
| 0.8 | 2.665417e-04 |
| 0.9 | 1.359607e-03 |
| 1 | 5.102208e-03 |
| 1.5 | 2.440767e-01 |
| 2 | 1.257901e+00 |
| 2.5 | 2.777827e+00 |
| 3 | 4.421000e+00 |
| 3.5 | 6.273383e+00 |
| 4 | 8.635359e+00 |
| 4.5 | 1.183276e+01 |
| 5 | 1.611010e+01 |
| 6 | 2.741816e+01 |
| 7 | 3.590196e+01 |
| 8 | 3.016678e+01 |
| 9 | 1.381562e+01 |
| 10 | 2.999917e+00 |

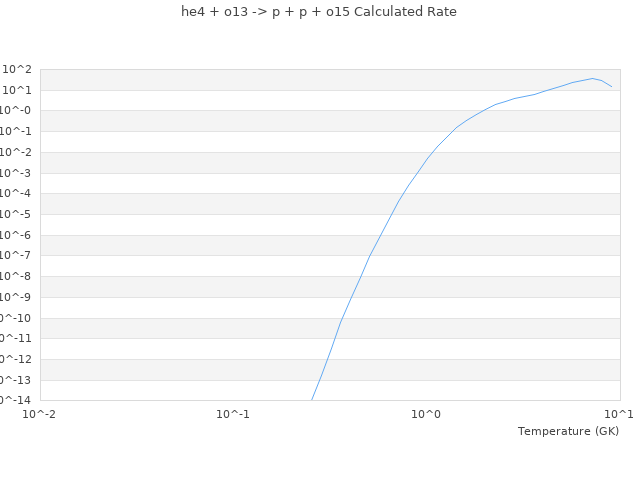

| View Graph | |
