Datapoints for n + p + he4 -> t + he3

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 0.000000e+00
0.15 0.000000e+00
0.2 INFe-309
0.3 1.844665e-207
0.4 1.740679e-156
0.5 6.677598e-126
0.6 1.622040e-105
0.7 5.842027e-91
0.8 4.779967e-80
0.9 1.455278e-71
1 8.827314e-65
1.5 1.799801e-44
2 2.308959e-34
2.5 2.481077e-28
3 2.455603e-24
3.5 1.676929e-21
4 2.161534e-19
4.5 9.194922e-18
5 1.804460e-16
6 1.489558e-14
7 3.314080e-13
8 3.276974e-12
9 1.899858e-11
10 7.622179e-11

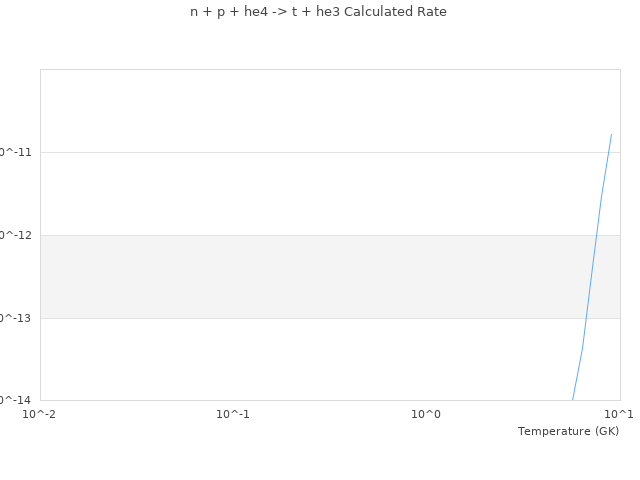

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
2 2.26E-34 2.30895859582E-34 2.1663 %
3 2.43E-24 2.45560279784E-24 1.0536 %
4 2.16E-19 2.16153401296E-19 0.071 %
5 1.83E-16 1.80445981097E-16 1.3956 %
