Datapoints for p + na22 -> mg23
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 4.842185e-07 |
| 0.15 | 7.341706e-04 |
| 0.2 | 2.803017e-02 |
| 0.3 | 1.067377e+00 |
| 0.4 | 6.761131e+00 |
| 0.5 | 2.110077e+01 |
| 0.6 | 4.641466e+01 |
| 0.7 | 8.406641e+01 |
| 0.8 | 1.357426e+02 |
| 0.9 | 2.039997e+02 |
| 1 | 2.919179e+02 |
| 1.5 | 1.091647e+03 |
| 2 | 2.403227e+03 |
| 2.5 | 3.927133e+03 |
| 3 | 5.448825e+03 |
| 3.5 | 6.881789e+03 |
| 4 | 8.207138e+03 |
| 4.5 | 9.430836e+03 |
| 5 | 1.056418e+04 |
| 6 | 1.259469e+04 |
| 7 | 1.433667e+04 |
| 8 | 1.579214e+04 |
| 9 | 1.695058e+04 |
| 10 | 1.780385e+04 |

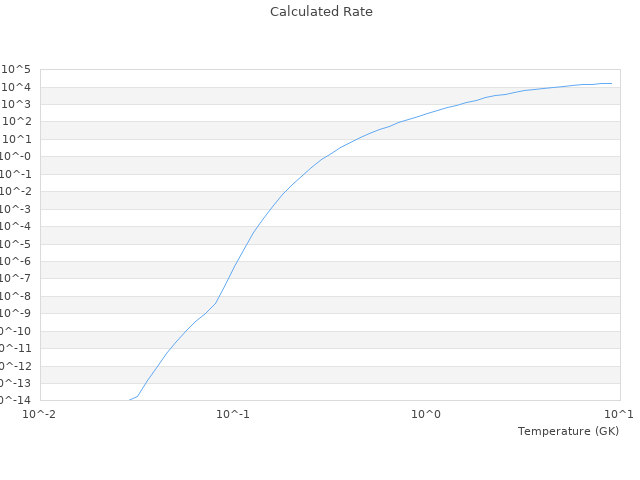

| View Graph | |
