Datapoints for p + o16 -> f17

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 1.256488e-07
0.15 8.535593e-06
0.2 1.191197e-04
0.3 3.130046e-03
0.4 2.394610e-02
0.5 1.002056e-01
0.6 2.954894e-01
0.7 6.956839e-01
0.8 1.402313e+00
0.9 2.525606e+00
1 4.178599e+00
1.5 2.407914e+01
2 7.095243e+01
2.5 1.512313e+02
3 2.676860e+02
3.5 4.209553e+02
4 6.105978e+02
4.5 8.357110e+02
5 1.095272e+03
6 1.714033e+03
7 2.461158e+03
8 3.333981e+03
9 4.332803e+03
10 5.460537e+03

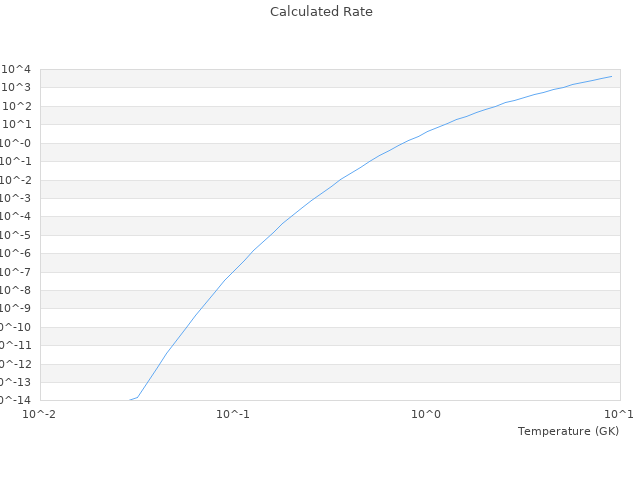

View Graph

Comparison with Literature Sources

T9 Literature Calculated (with SEF*) Difference
0.1 1.26E-7 1.2564876241286E-7* 0.2788 %
0.4 0.0236 0.023946099999961* 1.4665 %
1 4.13 4.1785993148493* 1.1767 %
2 71.9 70.952434868089* 1.3179 %
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
