Datapoints for he4 + ne22 -> mg26

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 9.896776e-25
0.15 2.723854e-19
0.2 6.033231e-16
0.3 2.571668e-11
0.4 7.825328e-09
0.5 2.641676e-07
0.6 2.815223e-06
0.7 1.532198e-05
0.8 5.482419e-05
0.9 1.501639e-04
1 3.508818e-04
1.5 1.550134e-02
2 2.953574e-01
2.5 2.260565e+00
3 1.038672e+01
3.5 3.444724e+01
4 9.006014e+01
4.5 1.965299e+02
5 3.733567e+02
6 1.000206e+03
7 2.047414e+03
8 3.521485e+03
9 5.383222e+03
10 7.573377e+03

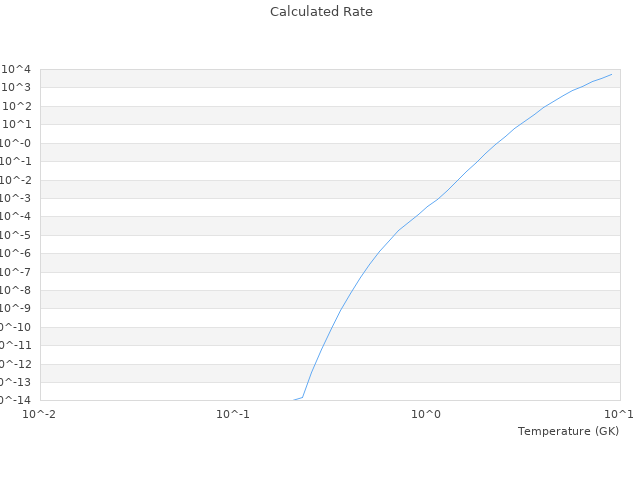

View Graph

Comparison with Literature Sources

T9 Literature Calculated (with SEF*) Difference
0.1 9.9E-25 9.8967764582438E-25* 0.0326 %
0.4 7.89E-9 7.8253280908985E-9* 0.8197 %
1 0.000363 0.00035088183508249* 3.3383 %
2 0.29 0.29565302014216* 1.9493 %
