Datapoints for he4 + c13 -> n + o16

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 6.951832e-14
0.15 2.490755e-10
0.2 4.323283e-08
0.3 2.981359e-05
0.4 2.854425e-03
0.5 8.784961e-02
0.6 1.075904e+00
0.7 7.068061e+00
0.8 3.071842e+01
0.9 1.005663e+02
1 2.690455e+02
1.5 6.992632e+03
2 4.829998e+04
2.5 1.812757e+05
3 4.751161e+05
3.5 9.821993e+05
4 1.721742e+06
4.5 2.686860e+06
5 3.865422e+06
6 6.880231e+06
7 1.089997e+07
8 1.592400e+07
9 2.152536e+07
10 2.692579e+07

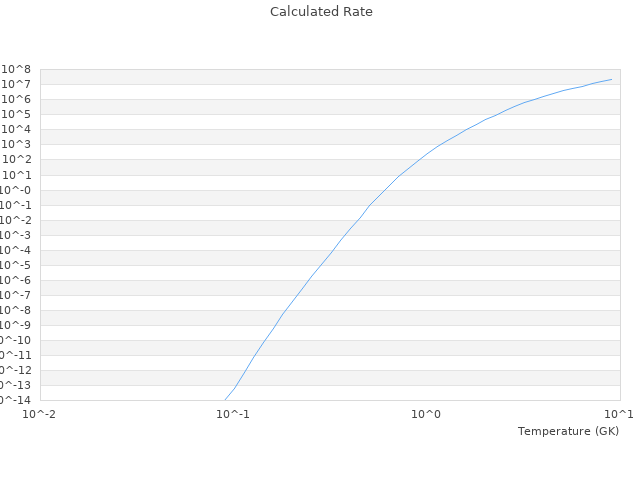

View Graph

Comparison with Literature Sources

T9 Literature Calculated (with SEF*) Difference
0.1 6.99E-14 6.95183169391E-14* 0.546 %
0.4 0.00288 0.00285442505524* 0.888 %
1 275 269.045477465* 2.1653 %
2 48400 48299.9815145* 0.2066 %
