Datapoints for he4 + o18 -> n + ne21

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 1.311222e-34
0.15 6.955782e-23
0.2 5.784910e-17
0.3 8.446998e-11
0.4 1.799448e-07
0.5 2.397798e-05
0.6 7.369143e-04
0.7 9.480731e-03
0.8 6.973040e-02
0.9 3.506520e-01
1 1.346285e+00
1.5 1.250791e+02
2 2.045572e+03
2.5 1.446761e+04
3 6.111640e+04
3.5 1.832052e+05
4 4.325937e+05
4.5 8.604426e+05
5 1.508393e+06
6 3.573675e+06
7 6.793478e+06
8 1.136875e+07
9 1.761144e+07
10 2.587681e+07

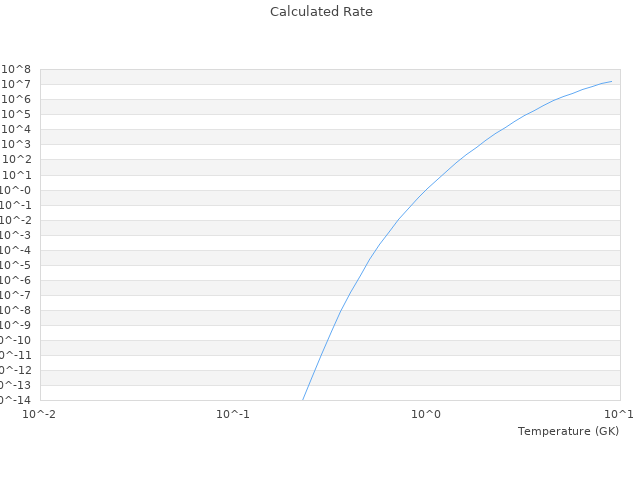

View Graph

Comparison with Literature Sources

T9 Literature Calculated (with SEF*) Difference
0.15 6.8E-23 6.9557823887716E-23* 2.2909 %
0.4 1.74E-7 1.7994478011764E-7* 3.4165 %
1 1.36 1.3462850207168* 1.0085 %
2 2070 2045.5724245155* 1.1801 %
