Datapoints for he4 + al27 -> n + p30

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 5.055685e-129
0.15 1.169245e-84
0.2 1.717703e-62
0.3 2.388237e-40
0.4 2.741206e-29
0.5 1.203078e-22
0.6 3.375831e-18
0.7 5.404924e-15
0.8 1.461299e-12
0.9 1.208793e-10
1 4.348567e-09
1.5 2.951829e-04
2 1.043854e-01
2.5 4.137501e+00
3 5.316473e+01
3.5 3.529323e+02
4 1.534619e+03
4.5 4.997515e+03
5 1.322615e+04
6 6.038297e+04
7 1.882303e+05
8 4.567670e+05
9 9.302470e+05
10 1.665872e+06

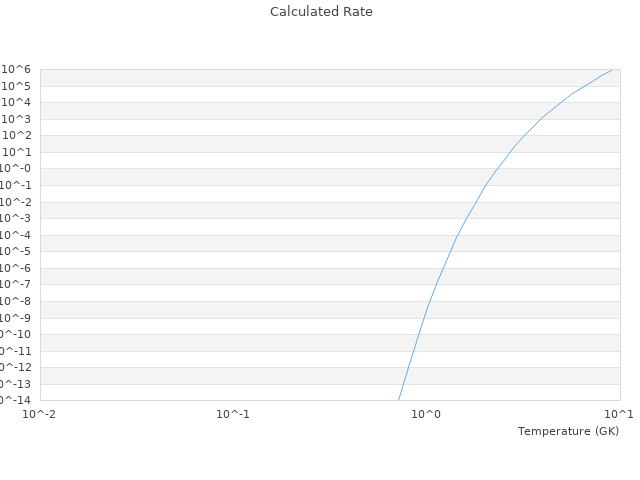

View Graph

Comparison with Literature Sources

T9 Literature Calculated (with SEF*) Difference
0.5 1.2E-22 1.20307759733E-22* 0.2565 %
1 4.33E-9 4.32263131346E-9* 0.1702 %
2 0.1 0.100467133346* 0.4671 %
3 49.8 49.5939670909* 0.4137 %
