Datapoints for n + mg25 -> he4 + ne22
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.277771e-05 |
| 0.15 | 1.918979e-05 |
| 0.2 | 7.739138e-05 |
| 0.3 | 2.330213e-03 |
| 0.4 | 1.502340e-02 |
| 0.5 | 4.914930e-02 |
| 0.6 | 1.401035e-01 |
| 0.7 | 4.534910e-01 |
| 0.8 | 1.501636e+00 |
| 0.9 | 4.433508e+00 |
| 1 | 1.133469e+01 |
| 1.5 | 2.864501e+02 |
| 2 | 2.402743e+03 |
| 2.5 | 1.244130e+04 |
| 3 | 4.511526e+04 |
| 3.5 | 1.248350e+05 |
| 4 | 2.833987e+05 |
| 4.5 | 5.565497e+05 |
| 5 | 9.809824e+05 |
| 6 | 2.423730e+06 |
| 7 | 4.865607e+06 |
| 8 | 8.513747e+06 |
| 9 | 1.353123e+07 |
| 10 | 2.004495e+07 |

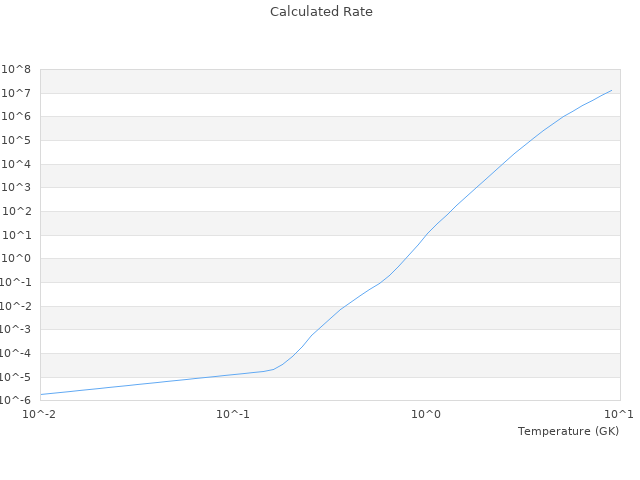

| View Graph | |
