Datapoints for p + ne21 -> na22

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 1.573605e-04
0.15 9.341754e-03
0.2 1.071302e-01
0.3 4.245478e+00
0.4 3.185111e+01
0.5 1.046400e+02
0.6 2.332242e+02
0.7 4.279849e+02
0.8 7.042176e+02
0.9 1.076411e+03
1 1.551757e+03
1.5 5.166767e+03
2 9.408300e+03
2.5 1.306208e+04
3 1.591965e+04
3.5 1.814748e+04
4 1.995770e+04
4.5 2.151337e+04
5 2.291752e+04
6 2.545468e+04
7 2.767151e+04
8 2.948313e+04
9 3.084534e+04
10 3.185277e+04

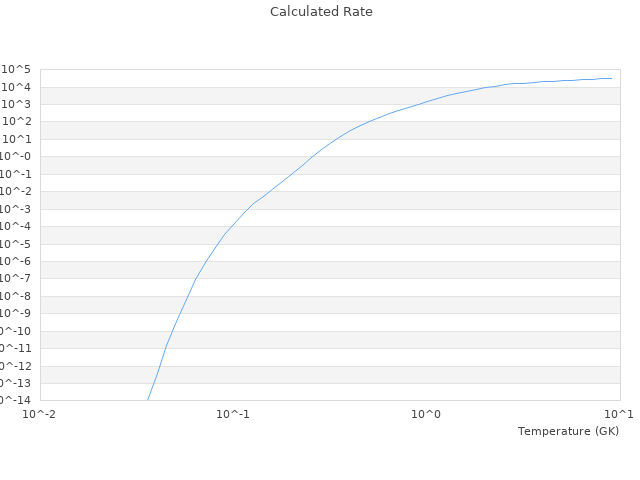

View Graph

Comparison with Literature Sources

T9 Literature Calculated (with SEF*) Difference
0.1 0.000157 0.00015736048863826* 0.2296 %
0.4 31.8 31.851106935485* 0.1607 %
1 1520 1575.2677266489* 3.636 %
2 10000 10363.835791516* 3.6384 %
