Datapoints for p + mg22 -> al23

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 1.697204e-13
0.15 5.138637e-11
0.2 1.889734e-09
0.3 2.087074e-07
0.4 4.408042e-06
0.5 3.423823e-05
0.6 1.488208e-04
0.7 4.597079e-04
0.8 1.146929e-03
0.9 2.478832e-03
1 4.831121e-03
1.5 5.380105e-02
2 2.552317e-01
2.5 7.774350e-01
3 1.817799e+00
3.5 3.577086e+00
4 6.243784e+00
4.5 9.986218e+00
5 1.494957e+01
6 2.900463e+01
7 4.913286e+01
8 7.577554e+01
9 1.091598e+02
10 1.493565e+02

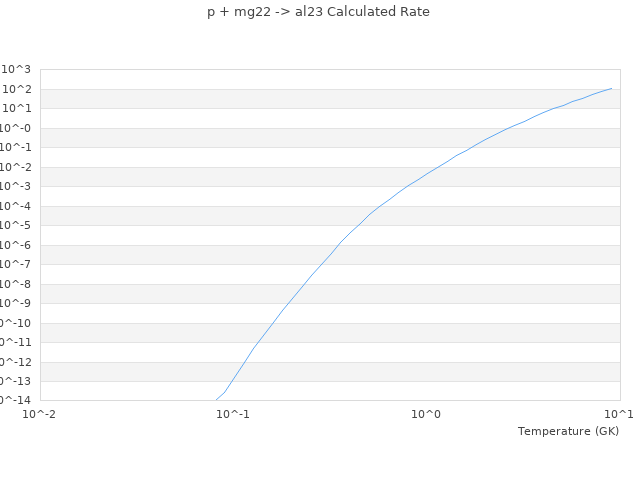

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.1 1.7E-13 1.6972039395106E-13 0.1645 %
0.4 4.42E-6 4.4080422798137E-6 0.2705 %
1 0.00486 0.004831121018139 0.5942 %
2 0.254 0.25523174289373 0.4849 %
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
