Datapoints for p + mg26 -> al27

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 2.244022e-08
0.15 2.408441e-05
0.2 4.361643e-03
0.3 1.072318e+00
0.4 1.674330e+01
0.5 8.465740e+01
0.6 2.445383e+02
0.7 5.152729e+02
0.8 8.945091e+02
0.9 1.368147e+03
1 1.918709e+03
1.5 5.373965e+03
2 9.554043e+03
2.5 1.446757e+04
3 2.025330e+04
3.5 2.695761e+04
4 3.452039e+04
4.5 4.280037e+04
5 5.160339e+04
6 6.988055e+04
7 8.756448e+04
8 1.031473e+05
9 1.156185e+05
10 1.245122e+05

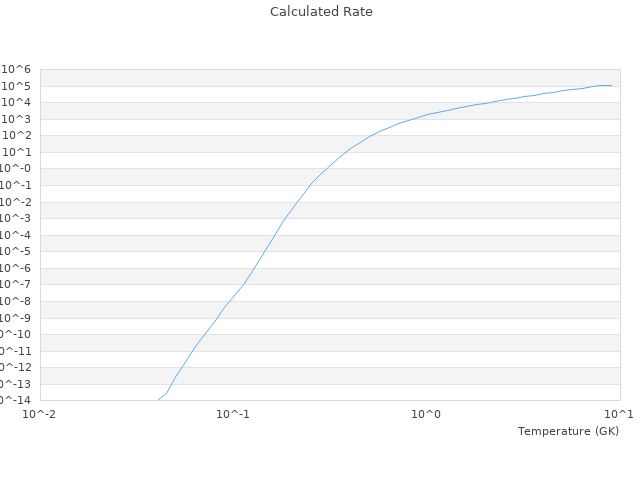

View Graph

Comparison with Literature Sources

T9 Literature Calculated (with SEF*) Difference
0.1 2.28E-8 2.244022425811E-8* 1.578 %
0.4 16.6 16.743299789222* 0.8633 %
1 1940 1918.7091673256* 1.0975 %
2 9460 9554.0431234768* 0.9941 %
