Datapoints for p + f17 -> ne18
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.734034e-09 |
| 0.15 | 2.807029e-07 |
| 0.2 | 5.151695e-06 |
| 0.3 | 1.965050e-04 |
| 0.4 | 2.241776e-03 |
| 0.5 | 1.733418e-02 |
| 0.6 | 9.247207e-02 |
| 0.7 | 3.348448e-01 |
| 0.8 | 8.952494e-01 |
| 0.9 | 1.921701e+00 |
| 1 | 3.520301e+00 |
| 1.5 | 2.024104e+01 |
| 2 | 4.530589e+01 |
| 2.5 | 6.935730e+01 |
| 3 | 8.619436e+01 |
| 3.5 | 9.357452e+01 |
| 4 | 9.286202e+01 |
| 4.5 | 8.734599e+01 |
| 5 | 8.026151e+01 |
| 6 | 6.831559e+01 |
| 7 | 6.093813e+01 |
| 8 | 5.578625e+01 |
| 9 | 5.138593e+01 |
| 10 | 4.738689e+01 |

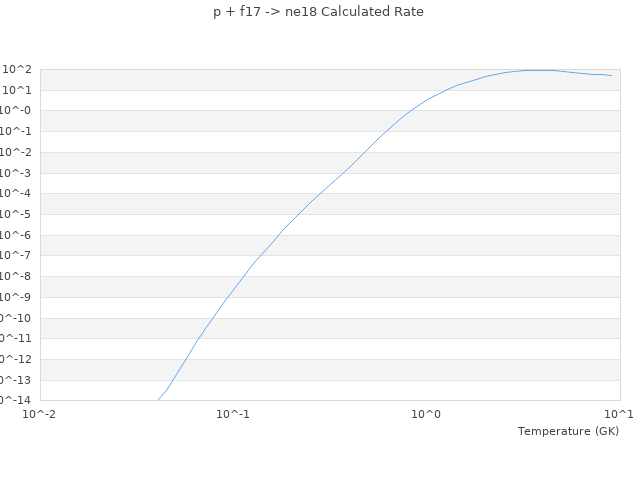

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
