Datapoints for p + na21 -> mg22

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 2.310293e-07
0.15 3.590367e-04
0.2 1.246049e-02
0.3 3.624430e-01
0.4 1.723072e+00
0.5 4.097370e+00
0.6 7.090798e+00
0.7 1.064617e+01
0.8 1.537487e+01
0.9 2.253093e+01
1 3.374461e+01
1.5 1.957937e+02
2 5.400782e+02
2.5 9.630594e+02
3 1.366950e+03
3.5 1.705280e+03
4 1.966856e+03
4.5 2.157108e+03
5 2.287259e+03
6 2.413846e+03
7 2.424491e+03
8 2.370383e+03
9 2.282371e+03
10 2.178487e+03

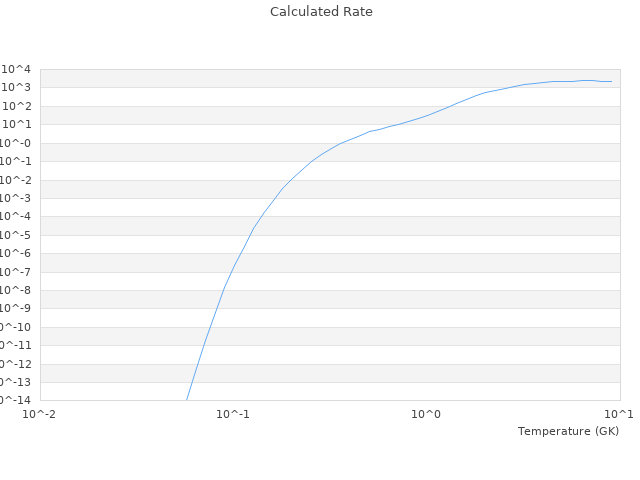

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.1 2.31E-7 2.3102933024914E-7 0.0127 %
0.4 1.74 1.7230721274141 0.9729 %
1 34.8 33.74460718073 3.0327 %
2 543 540.07815975126 0.5381 %
