Datapoints for he4 + o18 -> ne22

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 2.289707e-20
0.15 2.605556e-14
0.2 3.059297e-11
0.3 6.663040e-08
0.4 6.883036e-06
0.5 1.317611e-04
0.6 9.536478e-04
0.7 3.867704e-03
0.8 1.086969e-02
0.9 2.391163e-02
1 4.439427e-02
1.5 3.779894e-01
2 4.726603e+00
2.5 3.400371e+01
3 1.307317e+02
3.5 3.403965e+02
4 6.926205e+02
4.5 1.195749e+03
5 1.840858e+03
6 3.474582e+03
7 5.405126e+03
8 7.462007e+03
9 9.522810e+03
10 1.151006e+04

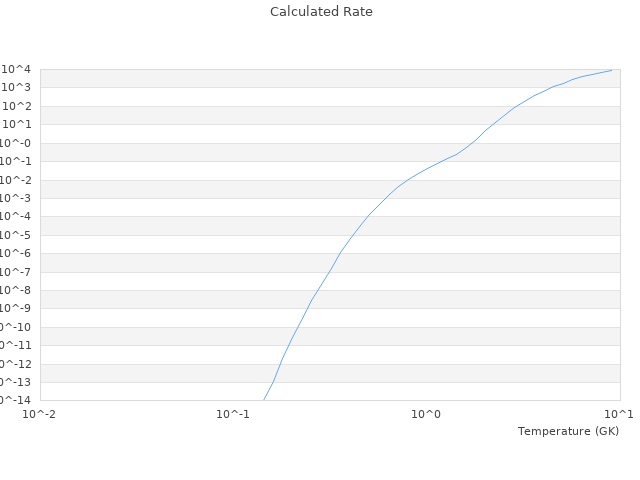

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.1 2.32E-20 2.2897074445259E-20 1.3057 %
0.15 2.65E-14 2.6055561323552E-14 1.6771 %
0.2 3.11E-11 3.0592968432632E-11 1.6303 %
0.3 6.7E-8 6.6630402770144E-8 0.5516 %
0.4 6.86E-6 6.8830356065907E-6 0.3358 %
0.5 0.00013 0.00013176113333247 1.3547 %
0.6 0.000944 0.00095364784747273 1.022 %
0.7 0.004 0.0038677042519562 3.3074 %
0.8 0.011 0.010869688964543 1.1846 %
0.9 0.024 0.023911629166802 0.3682 %
1 0.045 0.044394267966817 1.3461 %
