Datapoints for n + p -> d

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 3.845762e+04
0.15 3.649540e+04
0.2 3.490320e+04
0.3 3.246549e+04
0.4 3.069322e+04
0.5 2.936393e+04
0.6 2.834963e+04
0.7 2.756937e+04
0.8 2.696860e+04
0.9 2.650878e+04
1 2.616177e+04
1.5 2.552322e+04
2 2.588719e+04
2.5 2.671646e+04
3 2.777689e+04
3.5 2.895252e+04
4 3.018135e+04
4.5 3.142875e+04
5 3.267499e+04
6 3.512471e+04
7 3.749260e+04
8 3.977685e+04
9 4.199030e+04
10 4.415168e+04

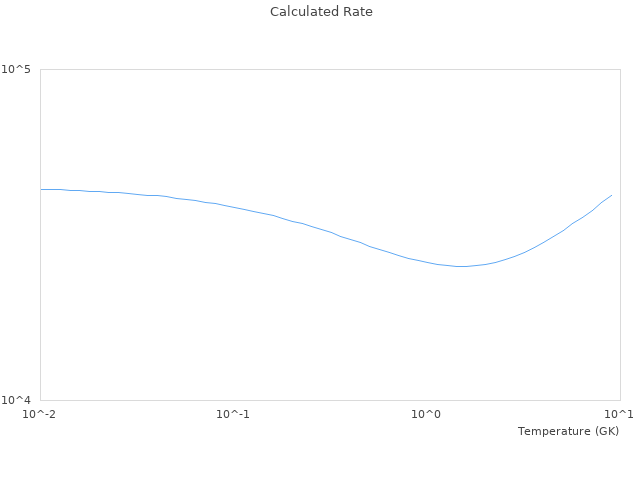

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.1 38500 38457.621245704 0.1101 %
0.15 36500 36495.399755001 0.0126 %
0.2 34900 34903.202231591 0.0092 %
0.3 32500 32465.492328858 0.1062 %
0.4 30700 30693.220293069 0.0221 %
0.5 29400 29363.930032276 0.1227 %
0.6 28300 28349.62789535 0.1754 %
0.7 27600 27569.371005248 0.111 %
0.8 27000 26968.596363991 0.1163 %
0.9 26500 26508.783858734 0.0331 %
1 26200 26161.767469135 0.1459 %
1.5 25500 25523.217233587 0.091 %
2 25900 25887.18686741 0.0495 %
2.5 26700 26716.462612245 0.0617 %
3 27800 27776.888716858 0.0831 %
3.5 28900 28952.515349601 0.1817 %
4 30200 30181.352212431 0.0617 %
4.5 31400 31428.751692554 0.0916 %
5 32700 32674.992122254 0.0765 %
6 35200 35124.708829462 0.2139 %
7 37600 37492.598292612 0.2856 %
8 39800 39776.853667308 0.0582 %
9 41900 41990.303470272 0.2155 %
10 44000 44151.681116176 0.3447 %
