Datapoints for he4 + o14 -> ne18

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 1.829157e-25
0.15 6.135554e-21
0.2 4.299817e-18
0.3 1.534638e-14
0.4 2.669799e-12
0.5 1.182730e-10
0.6 2.323155e-09
0.7 2.392979e-08
0.8 1.507011e-07
0.9 6.667692e-07
1 2.299164e-06
1.5 1.675038e-04
2 2.756570e-03
2.5 2.058104e-02
3 9.476042e-02
3.5 3.200172e-01
4 8.753409e-01
4.5 2.058935e+00
5 4.327557e+00
6 1.501544e+01
7 4.166365e+01
8 9.939992e+01
9 2.132751e+02
10 4.243977e+02

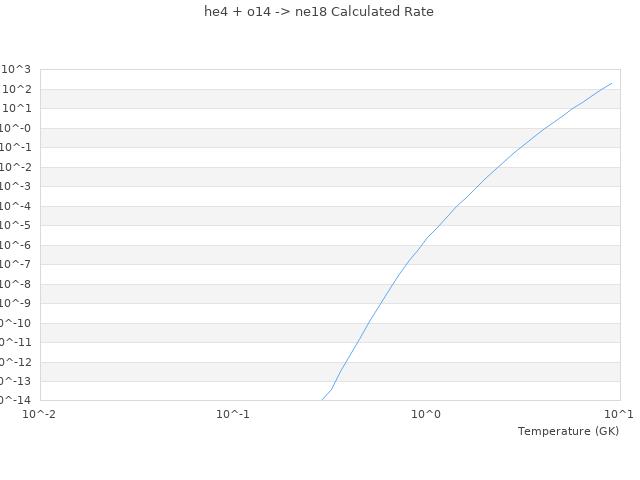

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.1 1.81E-25 1.82915668839E-25 1.0584 %
0.4 2.67E-12 2.66979867371E-12 0.0075 %
1 2.35E-6 2.29916421193E-6 2.1632 %
2 0.00282 0.00275656997809 2.2493 %
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
