Datapoints for he4 + ne20 -> p + na23
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 5.935787e-127 |
| 0.15 | 2.911718e-84 |
| 0.2 | 1.589245e-62 |
| 0.3 | 1.571246e-40 |
| 0.4 | 1.816116e-29 |
| 0.5 | 1.014177e-22 |
| 0.6 | 4.230600e-18 |
| 0.7 | 9.868396e-15 |
| 0.8 | 3.466478e-12 |
| 0.9 | 3.322721e-10 |
| 1 | 1.287544e-08 |
| 1.5 | 1.039637e-03 |
| 2 | 3.575568e-01 |
| 2.5 | 1.246314e+01 |
| 3 | 1.369818e+02 |
| 3.5 | 7.750026e+02 |
| 4 | 2.887503e+03 |
| 4.5 | 8.128822e+03 |
| 5 | 1.878460e+04 |
| 6 | 6.738271e+04 |
| 7 | 1.712929e+05 |
| 8 | 3.502097e+05 |
| 9 | 6.181579e+05 |
| 10 | 9.832753e+05 |

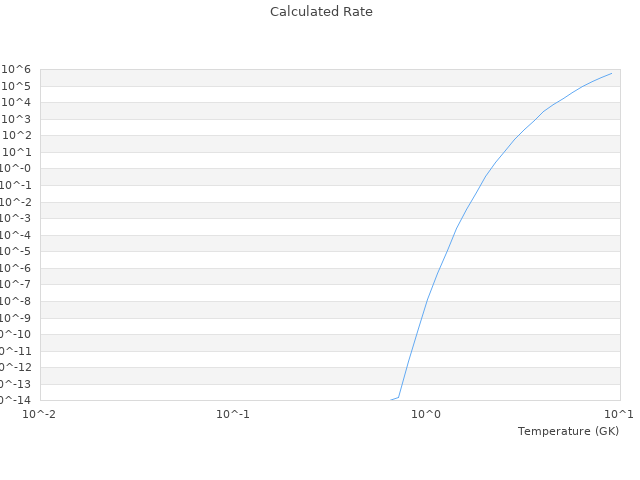

| View Graph | |
