Datapoints for he4 + he3 -> be7

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 2.323868e-05
0.15 5.736284e-04
0.2 4.241256e-03
0.3 5.044481e-02
0.4 2.345379e-01
0.5 6.889860e-01
0.6 1.550851e+00
0.7 2.941545e+00
0.8 4.958242e+00
0.9 7.672391e+00
1 1.113179e+01
1.5 4.007061e+01
2 8.704246e+01
2.5 1.485980e+02
3 2.214768e+02
3.5 3.033735e+02
4 3.929413e+02
4.5 4.896198e+02
5 5.934629e+02
6 8.251938e+02
7 1.096951e+03
8 1.423018e+03
9 1.823545e+03
10 2.326153e+03

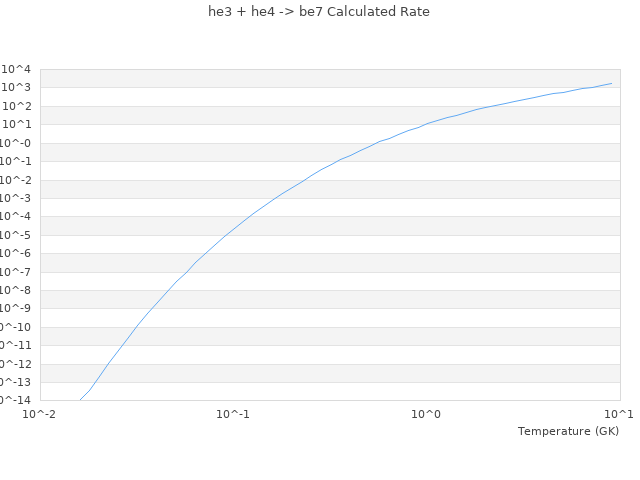

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.1 2.348E-5 2.3238676774426E-5 1.0278 %
0.15 0.0005803 0.00057362835764704 1.1497 %
0.2 0.004291 0.0042412564741893 1.1593 %
0.3 0.05097 0.050444805986637 1.0304 %
0.4 0.2364 0.23453790687749 0.7877 %
0.5 0.6923 0.68898598904407 0.4787 %
0.6 1.553 1.550850564187 0.1384 %
0.7 2.935 2.9415452130891 0.223 %
0.8 4.932 4.9582416391204 0.5321 %
0.9 7.608 7.672391228288 0.8464 %
1 11.01 11.131786873401 1.1061 %
1.5 39.25 40.070610544286 2.0907 %
2 85.08 87.042458173158 2.3066 %
