Datapoints for n + he3 -> p + t

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 5.907763e+08
0.15 5.717643e+08
0.2 5.567963e+08
0.3 5.341889e+08
0.4 5.179137e+08
0.5 5.059262e+08
0.6 4.971073e+08
0.7 4.907442e+08
0.8 4.863411e+08
0.9 4.835316e+08
1 4.820346e+08
1.5 4.877455e+08
2 5.053720e+08
2.5 5.275108e+08
3 5.506230e+08
3.5 5.729762e+08
4 5.937634e+08
4.5 6.126727e+08
5 6.296602e+08
6 6.583396e+08
7 6.812480e+08
8 7.000804e+08
9 7.164269e+08
10 7.317054e+08

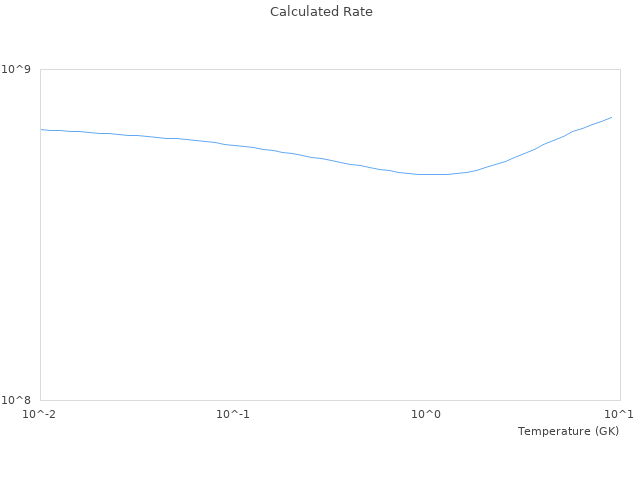

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.1 591200000 590776265.65442 0.0717 %
0.15 571500000 571764270.14379 0.0462 %
0.2 556000000 556796334.30238 0.1432 %
0.3 532700000 534188949.76762 0.2795 %
0.4 516200000 517913700.16102 0.332 %
0.5 504300000 505926249.87791 0.3225 %
0.6 495900000 497107263.34339 0.2434 %
0.7 490100000 490744233.70745 0.1314 %
0.8 486400000 486341069.8433 0.0121 %
0.9 484200000 483531624.8753 0.138 %
1 483400000 482034588.96001 0.2825 %
1.5 490300000 487745461.98358 0.521 %
2 506700000 505372040.15384 0.2621 %
2.5 526900000 527510819.55045 0.1159 %
3 548600000 550623009.89677 0.3688 %
3.5 570200000 572976154.00943 0.4869 %
4 591000000 593763394.09991 0.4676 %
5 628400000 629660218.8495 0.2005 %
6 659400000 658339648.90626 0.1608 %
7 684100000 681247979.89158 0.4169 %
8 703200000 700080351.97524 0.4436 %
9 717600000 716426935.97684 0.1635 %
10 728100000 731705431.0964 0.4952 %
