Datapoints for n + be7 -> p + li7

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 3.021956e+09
0.15 2.744058e+09
0.2 2.541118e+09
0.3 2.257189e+09
0.4 2.066063e+09
0.5 1.929092e+09
0.6 1.827006e+09
0.7 1.748691e+09
0.8 1.687155e+09
0.9 1.637752e+09
1 1.597267e+09
1.5 1.467060e+09
2 1.384800e+09
2.5 1.315257e+09
3 1.250159e+09
3.5 1.188365e+09
4 1.130448e+09
4.5 1.077154e+09
5 1.029011e+09
6 9.490868e+08
7 8.909579e+08
8 8.537401e+08
9 8.366573e+08
10 8.397759e+08

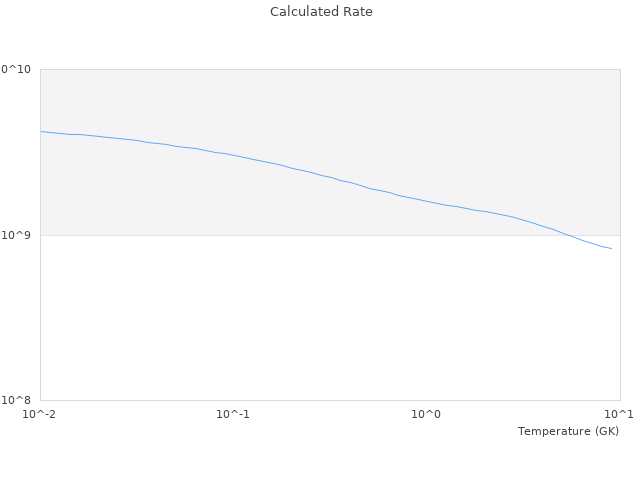

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.1 3013000000 3021956130.78 0.2972 %
0.15 2738000000 2744058302.46 0.2213 %
0.2 2539000000 2541117632.1 0.0834 %
0.3 2260000000 2257188886.01 0.1244 %
0.4 2070000000 2066062765.28 0.1902 %
0.5 1932000000 1929091760.42 0.1505 %
0.6 1829000000 1827006163.83 0.109 %
0.7 1752000000 1748690554.82 0.1889 %
0.8 1692000000 1687155446.45 0.2863 %
0.9 1644000000 1637752209.53 0.38 %
1 1605000000 1597267203.5 0.4818 %
1.5 1474000000 1467059872.86 0.4708 %
2 1382000000 1384799555.15 0.2026 %
2.5 1303000000 1315256704.55 0.9407 %
3 1233000000 1250159256.43 1.3917 %
3.5 1172000000 1188365024.54 1.3963 %
4 1119000000 1130448365.68 1.0231 %
5 1032000000 1029010791.47 0.2897 %
6 964500000 949086832.347 1.598 %
7 912500000 890957853.214 2.3608 %
8 871600000 853740135.875 2.0491 %
9 839400000 836657270.881 0.3267 %
10 814800000 839775857.036 3.0653 %
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
