Datapoints for d + t -> n + he4

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 4.445950e+07
0.15 1.197646e+08
0.2 2.063773e+08
0.3 3.493212e+08
0.4 4.292341e+08
0.5 4.674513e+08
0.6 4.869312e+08
0.7 4.979557e+08
0.8 5.031526e+08
0.9 5.031100e+08
1 4.985680e+08
1.5 4.431678e+08
2 3.829413e+08
2.5 3.353876e+08
3 2.997952e+08
3.5 2.731878e+08
4 2.530099e+08
4.5 2.373846e+08
5 2.249732e+08
6 2.062096e+08
7 1.917097e+08
8 1.786715e+08
9 1.655109e+08
10 1.514239e+08

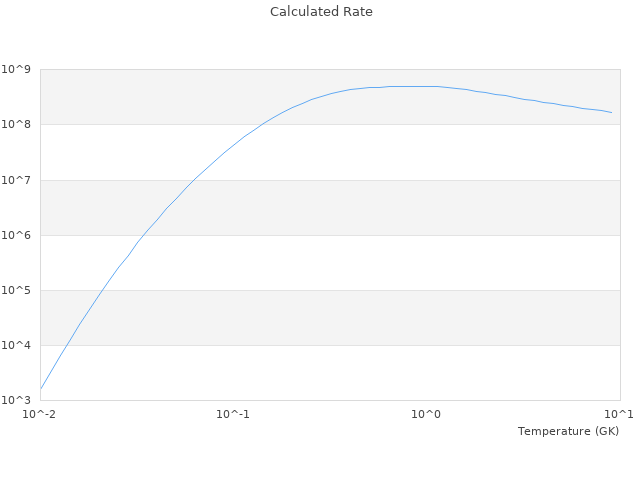

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.1 45130000 44459496.979 1.4857 %
0.15 120800000 119764636.12 0.8571 %
0.2 204400000 206377346.035 0.9674 %
0.3 342000000 349321243.849 2.1407 %
0.4 427700000 429234107.632 0.3587 %
0.5 475000000 467451335.666 1.5892 %
0.6 498000000 486931197.629 2.2227 %
0.7 506400000 497955746.116 1.6675 %
0.8 505800000 503152603.798 0.5234 %
0.9 500000000 503109985.117 0.622 %
1 491000000 498567950.732 1.5413 %
1.5 432200000 443167805.721 2.5377 %
2 380600000 382941346.451 0.6152 %
2.5 338900000 335387601.857 1.0364 %
3 306200000 299795192.746 2.0917 %
3.5 280300000 273187832.223 2.5373 %
4 259300000 253009878.875 2.4258 %
5 227500000 224973154.914 1.1107 %
6 204300000 206209571.283 0.9347 %
7 187100000 191709720.099 2.4638 %
8 174200000 178671487.82 2.5669 %
9 164200000 165510947.241 0.7984 %
10 156100000 151423866.673 2.9956 %
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
