Datapoints for mg23 -> he4 + ne19
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 1.030150e-252 |
| 0.3 | 2.968191e-167 |
| 0.4 | 5.858060e-124 |
| 0.5 | 1.130837e-97 |
| 0.6 | 5.840512e-80 |
| 0.7 | 3.500285e-67 |
| 0.8 | 1.641469e-57 |
| 0.9 | 6.329993e-50 |
| 1 | 8.294008e-44 |
| 1.5 | 4.156723e-25 |
| 2 | 1.792758e-15 |
| 2.5 | 1.502441e-09 |
| 3 | 1.617206e-05 |
| 3.5 | 1.387887e-02 |
| 4 | 2.396180e+00 |
| 4.5 | 1.400198e+02 |
| 5 | 3.795486e+03 |
| 6 | 5.850386e+05 |
| 7 | 2.294886e+07 |
| 8 | 3.723349e+08 |
| 9 | 3.278414e+09 |
| 10 | 1.844929e+10 |

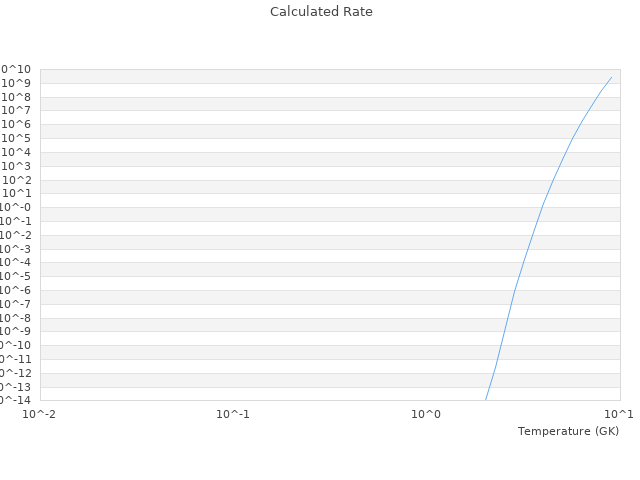

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
